  1. BARCODE SCANNER
  2. WHMBL-3100 （wired scanner)

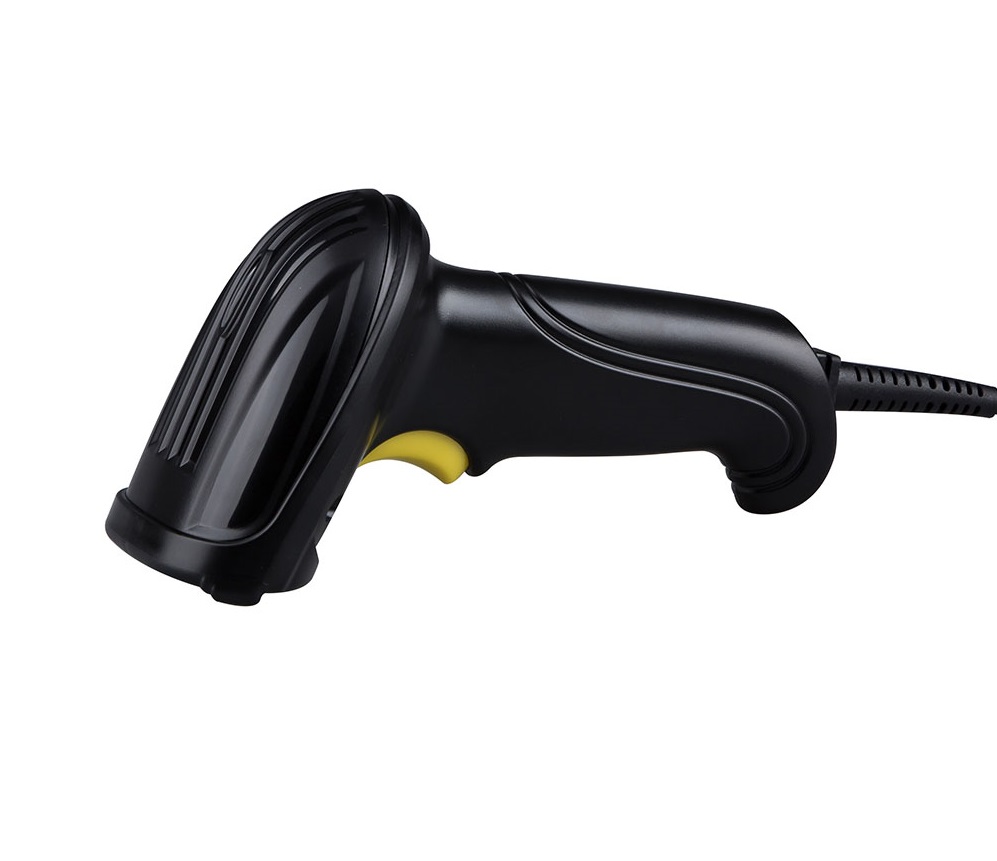

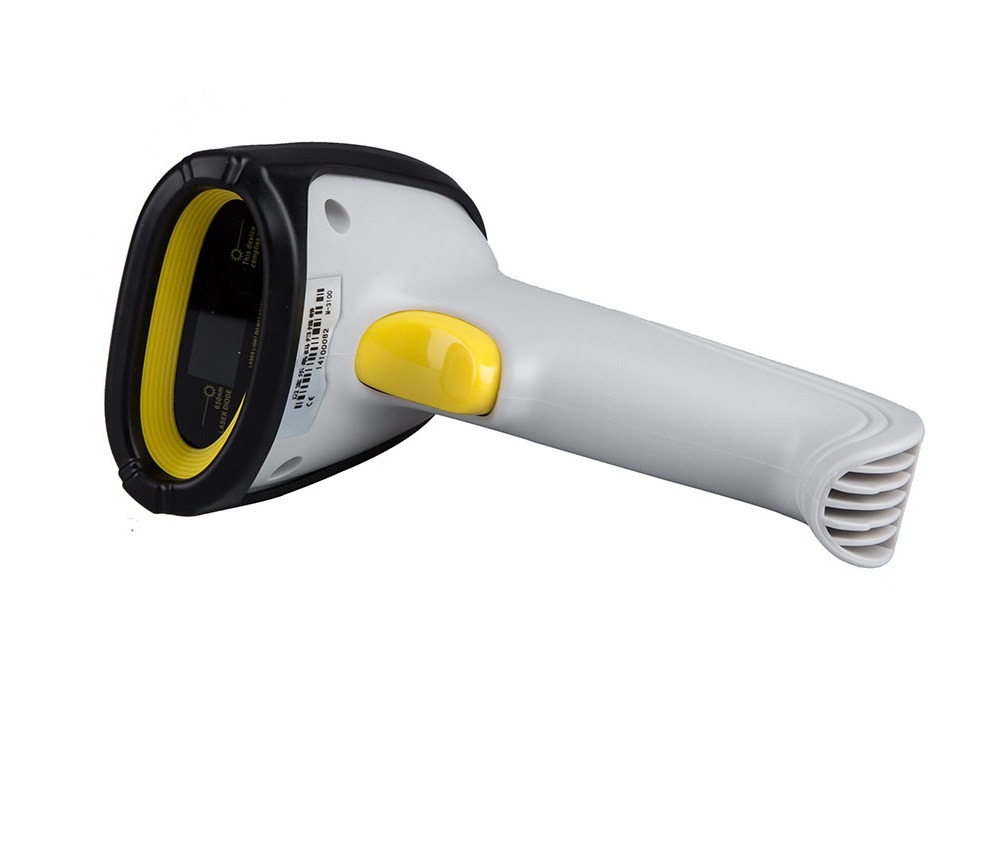

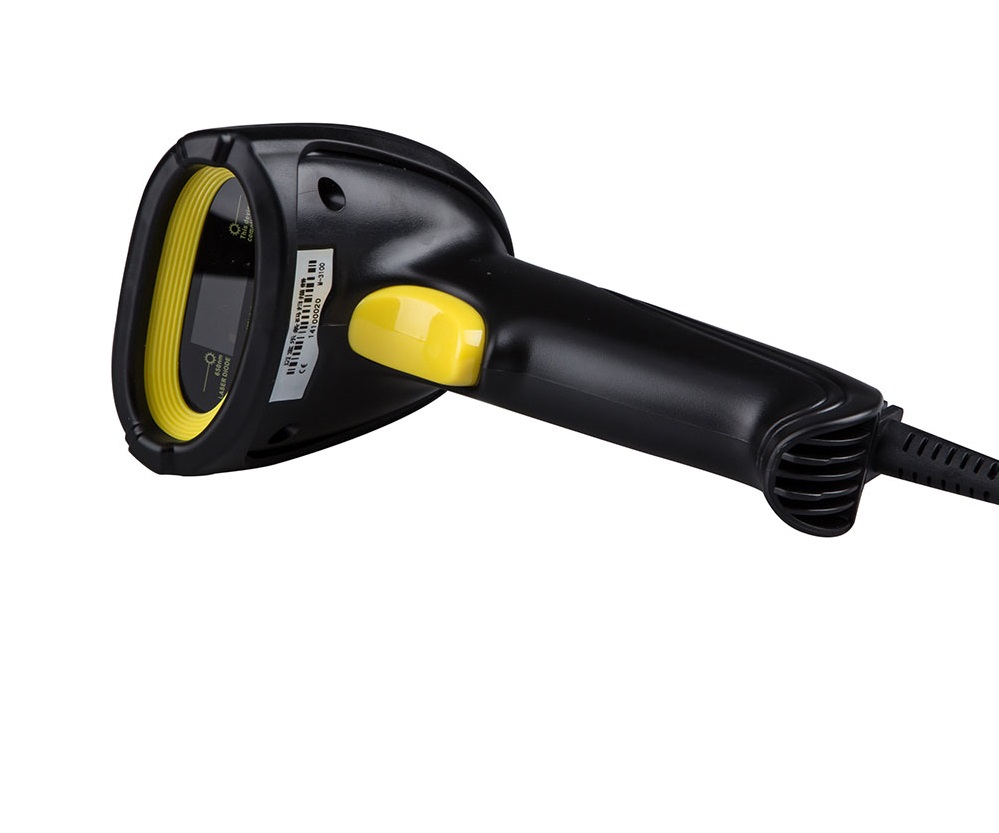

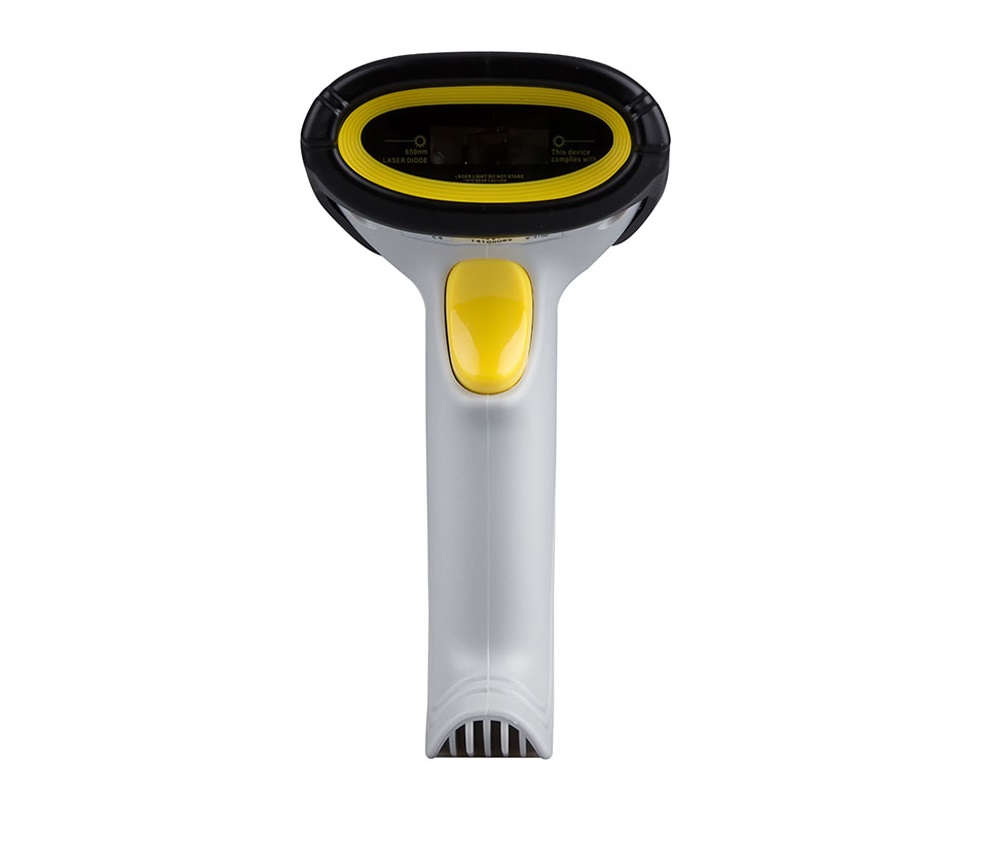

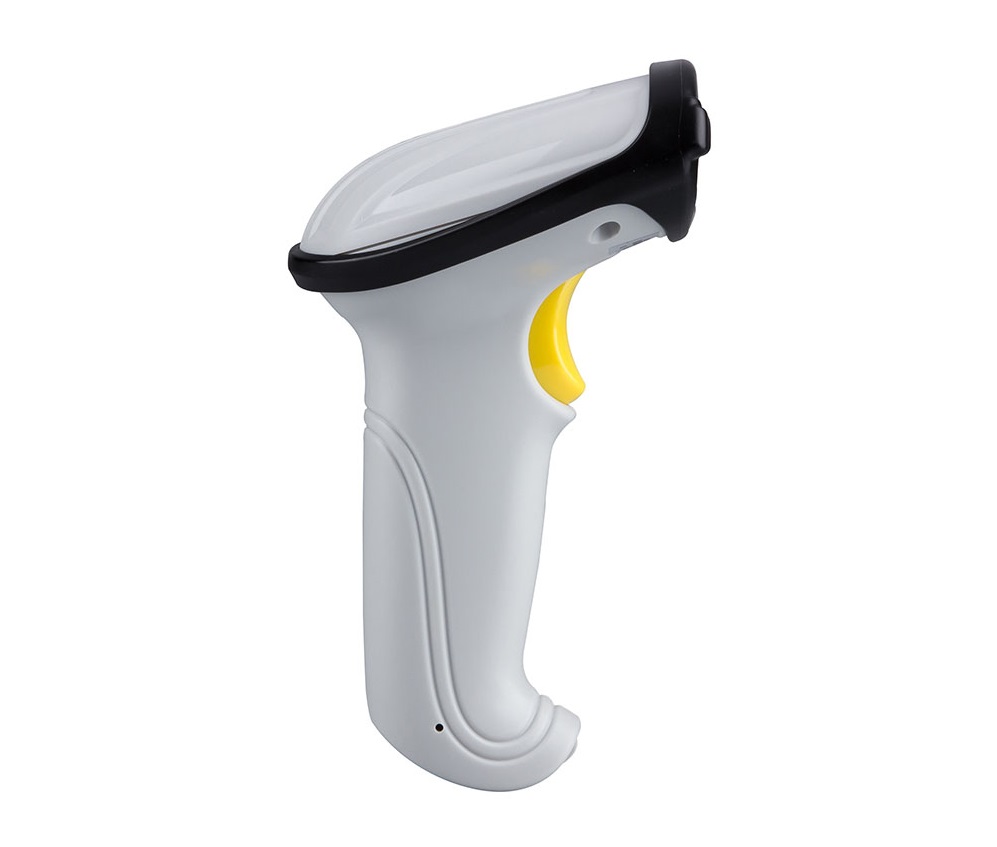

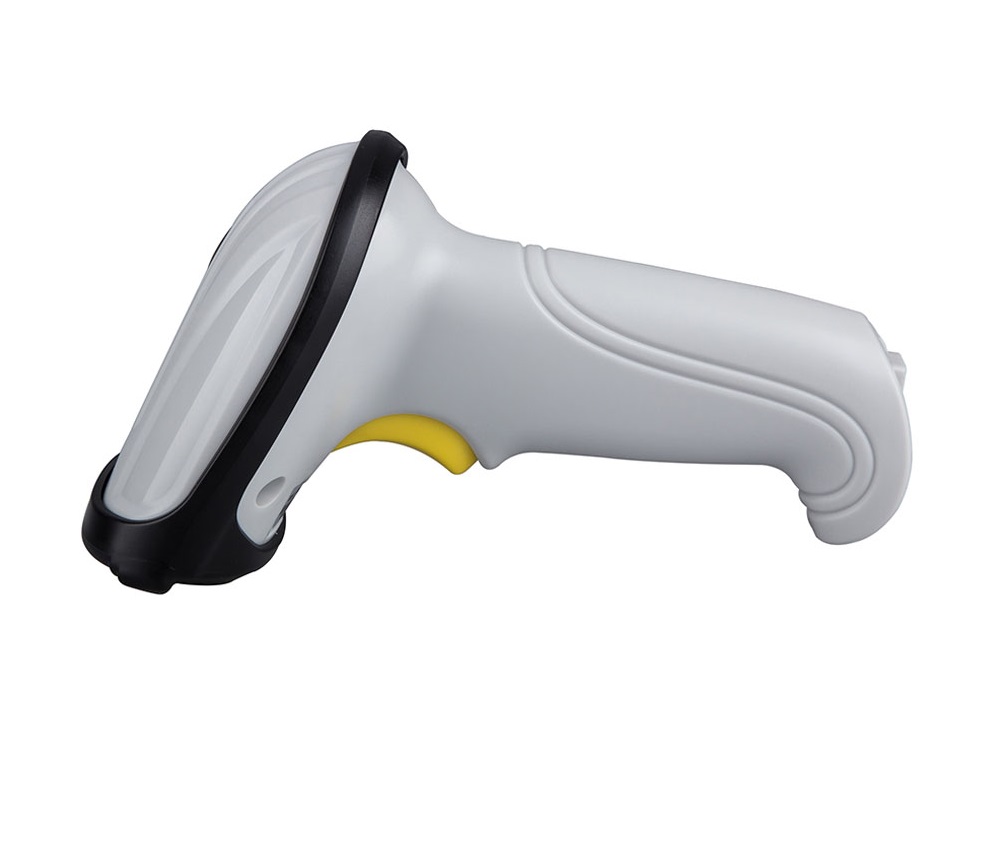

wired scanner - WHMBL-3100

To solve the scanning problem for you. There are four functions, The strength of witness

Product Specification
Light sources Visual laser 650nm
Error rate 1/5 million
Safety performance Meet the national level laser safety standards .
Barcode Type UPC-A , UPC-E , EAN-13 , EAN-8 , ISBN/ISSN , code 39 , Codabar , Cross 25 code ,
industrial 25 code , 128code , 93 code , 11 code,MSI/PIESSEY ,
UCC/EAN128 and other standard 1d code.
Interface PS/2 keyboard,RS-232 COM,Standard 2.0 USB interface
Scanning Type Manual; Automatic sensing; Automatic continuous scanning.
Transmission rate RS232 baudrate: 1200-115200
Scanning accuracy Min 0.1mm (4mils)
Depth of field 2—9cm( 0.1mm) , 3—50cm( 0.3mm)
Scanning angle 10-600mm ,Pitch 60° Dip Angle 45°
Input Voltage DC 5V±5
Shock Resistance Passed the 1.5 m Shock Resistance eters free landing test.
Shell material ABS+PVC+PC
Language Multi-language
CPU 32bit ARM
Weight 131±5g

Product Information

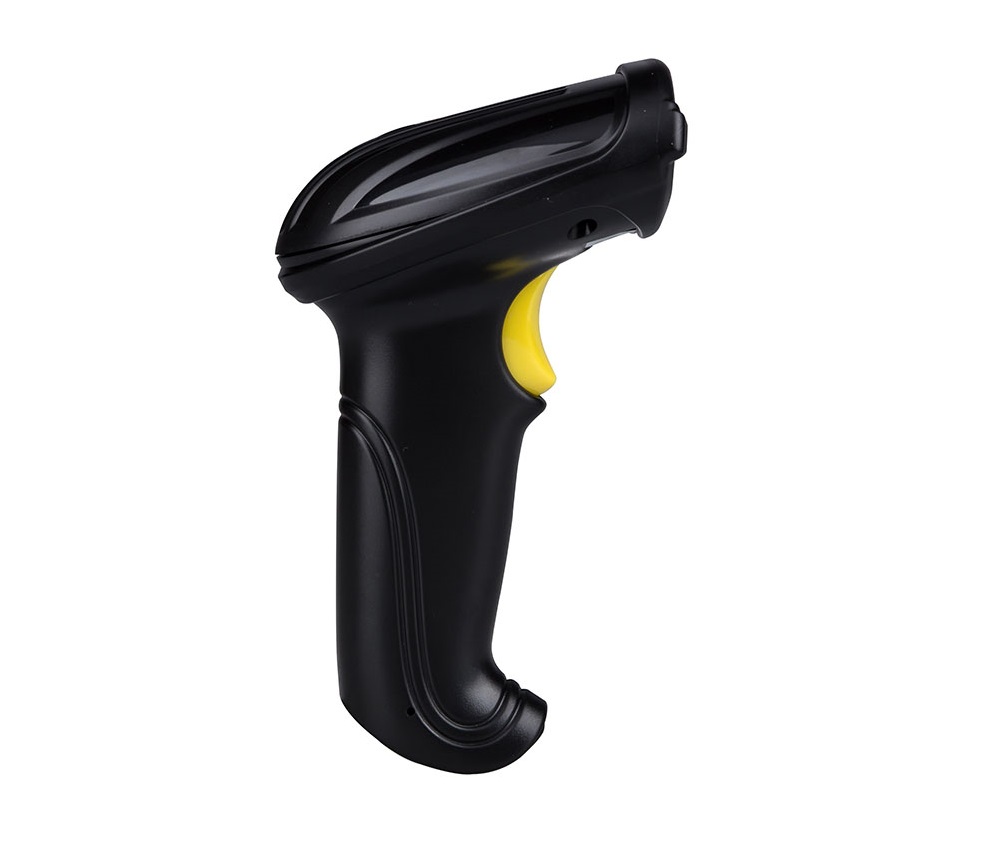

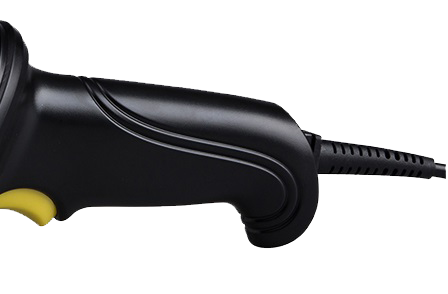

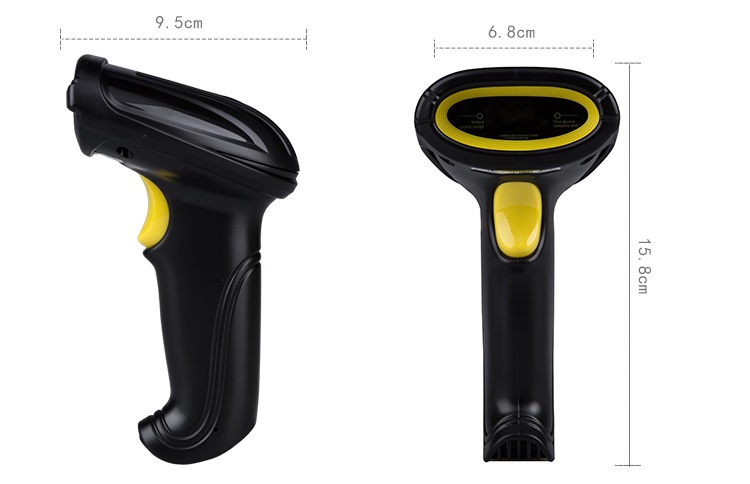

Size of scanner is comfortable for grip of hand

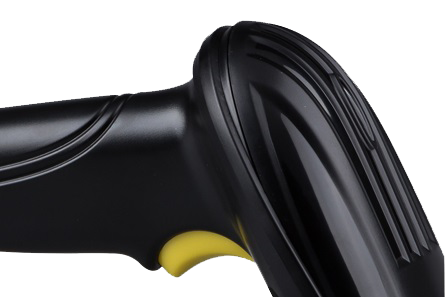

High quality shell, good anti-shake effect

     It can identify a variety of barcodes and micro-damaged barcodes.. It can withstand the height of 2m fall and still work properly

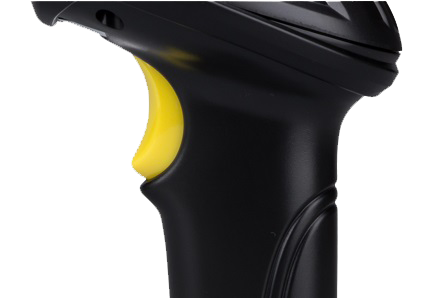

High elastic button

     It's have long lifetime , when the scanner doesn't work will automatically enter the sleep state.

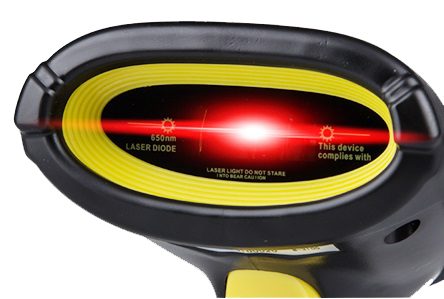

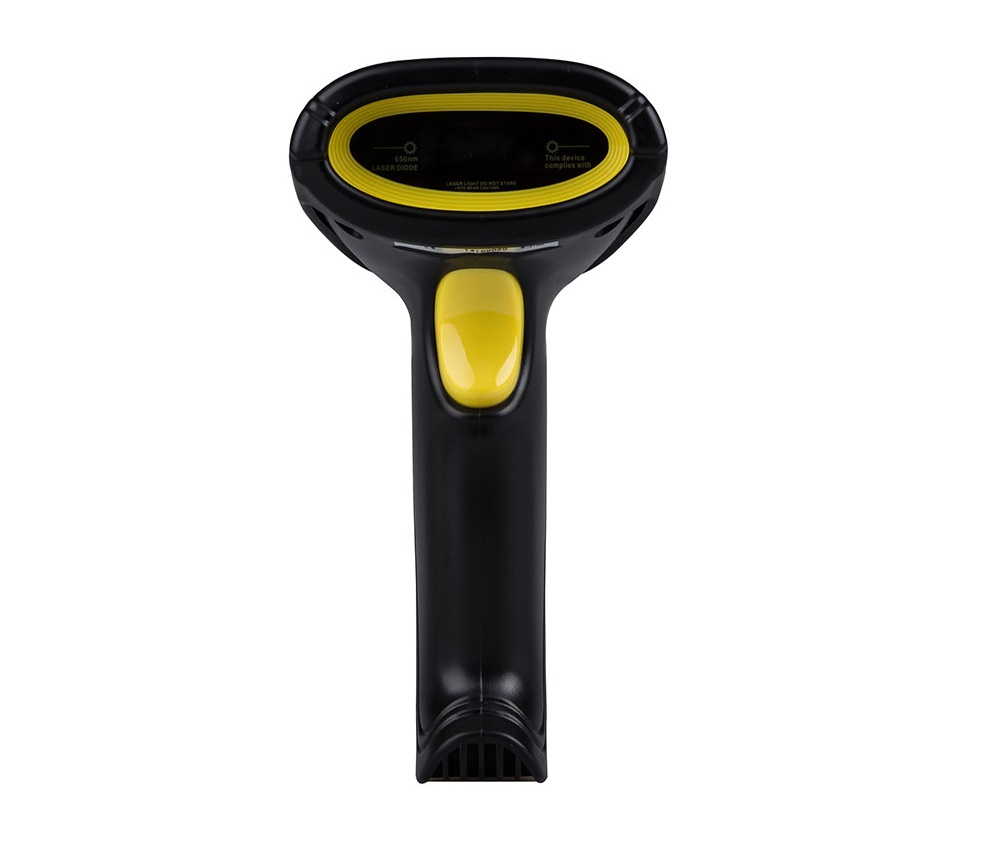

High quality laser head

     It has high sensitivity, strong ability to identify and has a powerful scanning function.

Data line transmision, plug and play

     It does not need a power outlet to solve the solution that we find not the socket
